HPMX-T Rod Ends | Precision Steel – PTFE Lined

HPMX-T

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.

HPMX-t
HPMX-T
BALL RACE BODY
52100 BEARING STEEL STAINLESS 4130 CHROMOLY
PRECISION GROUND STEEL HEAT TREATED
HEAT TREATED CHROME PLATED
HARD CHROME PLATED PTFE LINED

CAUTIONS

  1. DO NOT LUBRICATE: The rod ends listed below are self-lubricating. Additional lubricants may attract dirt and/or interfere with the self-lubricating properties of the component and may cause accelerated wear.
  2. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.
  3. DO NOT OPERATE VEHICLE WITH WORN OR CONTAMINATED ROD ENDS.

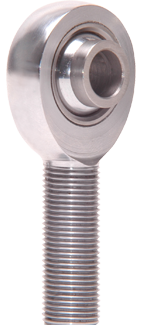

HPMX-T: PRECISION CHROMOLY STEEL, HIGH MISALIGNMENT SERIES, PTFE LINED –
HEAVY DUTY

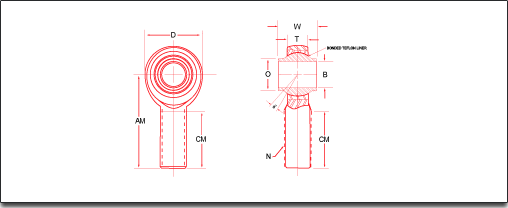

RES PART NO. BORE X THD. SIZE REF. B DIA. +.0000 -.0005 D DIA. +.010 -.010 W WIDTH + .000 – .005 T WIDTH + .005 – .005 BALL DIA.REF. AM LGTH. -.015 +.015 N THD. UNF. 3A CM LGTH. +.031 -.031 ODIA.REF. aMIS. ANG. REF. ULT. STATIC RADIAL LOAD (LBS.) APPROX WIEGHT (LBS.)
HPMX6T 3/8×3/8-24 .3750 1.125 .813 .355 .781 2.125 3/8-24 1.281 .512 22 11,410 .12
HPMX7T 7/16×7/16-20 .4375 1.312 .875 .355 .875 2.438 7/16-20 1.468 .618 21 15,760 .23
HPMX8T 1/2×1/2-20 .5000 1.500 .937 .411 1.000 2.625 1/2-20 1.562 .730 19 23,705 .33
HPMX10T 5/8×5/8-18 .6250 1.750 1.200 .577 1.250 2.875 5/8-18 1.687 .856 19 28,110 .57
HPMX12T 3/4×3/4-16 .7500 1.500 1.280 .630 1.375 3.375 3/4-16 2.000 .970 19 38,707 .82

HEAVY DUTY SHANK

RES PART NO. BORE X THD. SIZE REF. B DIA. +.0000 -.0005 D DIA. +.010 -.010 W WIDTH + .000 – .005 T WIDTH + .005 – .005 BALL DIA.REF. AM LGTH. -.015 +.015 N THD. UNF. 3A CM LGTH. +.031 -.031 ODIA.REF. aMIS. ANG. REF. ULT. STATIC RADIAL LOAD (LBS.) APPROX WIEGHT (LBS.)
HPMX6-7T 3/8×7/16-20 .3750 1.125 .813 .355 .781 2.125 7/16-20 1.281 .512 22 16,985 .16
HPMX7-8T 7/16×1/2-20 .4375 1.312 .875 .355 .875 2.438 1/2-20 1.468 .618 21 19,025 .25
HPMX8-10T 1/2×5/8-18 .5000 1.500 .937 .411 1.000 2.625 5/8-18 1.562 .730 20 25,277 .39
HPMX10-12T 5/8×3/4-16 .6250 1.750 1.200 .577 1.250 2.875 3/4-16 1.687 .856 20 44,650 .60
HPMX12-14T 3/4×7/8-14 .7500 1.500 1.280 .630 1.375 3.375 7/8-14 2.000 .970 18 53,720 .90
